Aluminium Brass Tubes and Fin Tubes

Aluminium Brass Tubes and Fin Tubes

ASTM B111 / ASTM B395.

ASTM B111 Aluminium Brass Tubes, ASME SB 395 Aluminium Brass Tubes, Aluminium Brass Refrigeration Tube, Aluminium Brass Radiator Tubes, Heat Exchanger Aluminium Brass Tube, Aluminium Brass Tubes for Evaporators, Aluminium Brass Tubes for Oil Burner, Aluminium Brass Tube Supplier in Mumbai, India.

Sparsh Impex is a leading manufacturer, supplier, exporter and stockist of Aluminium brass tubes and fin tubes in Mumbai, India. We manufacture these Aluminium brass tubes using high quality raw materials and advanced technology equipment under the guidance of our professional team. We offer these Aluminium Brass Fin Tubes in multiple fin styles, all with different specifications and operative requirements in various sizes as per the requirements of our customers at the most reasonable prices. All these types of Fin Tubes are sturdy and resistant to mechanical stress and can be easily cleaned with water or steam.

Aluminium Brass Fin Tubes are used in various applications like Automobile Industry, General Engineering Purposes, Industrial Refrigeration, Heat Exchanger, Radiator, Oil Burner Tube, Evaporator, etc. The appearance and tarnish resistance of aluminum brass tubes makes it a suitable material of choice for decorative architectural features. The main characteristic of Aluminium Brass Fin Tubes is its high resistance to impingement attack. Aluminium Brass Fin Tubes are recommended for use in Marine and Land Power Stations, in which cooling water velocities are high. High strength combined with increased overall corrosion resistance and low susceptibility to stress corrosion cracking of aluminium brass tubes make it a commonly utilized material for load bearing masonry fixing.

Aluminium Brass Crimped Type Finned Tube, Aluminium Brass L Base Finned Tube, Aluminium Brass G Base Finned Tube, Aluminium Brass Fin Tube, Aluminium Brass Finned Tube Supplier in Mumbai, India.

We conduct various tests on our Aluminium Brass Tubes to ensure they are suitable for use in various working conditions. Our Aluminium Brass Fin Tubes are available with Intermediate landings (plain portion for baffle sheet support), and with plain portion at both ends as per customer requirement.

Aluminium Brass Tubes / Fin Tubes Specification

Specifications : ASTM B111, B395 / ASME SB111, SB395

Size : 1/8" (3.2mm) OD to 13/8" (34.9mm) OD in Coil Form & 2mm OD to 41/8" (104.8mm) OD in Straight Length.

Standard Length : 50 Feet/100 Feet in Coil Form & 5.8 Meters in Straight Length. Also as per client requirements

Thickness : 10SWG (3.2mm) to 27SWG (0.4mm)

Temper : "O" (Soft Annealed)/ H58 (Drawn General Purpose) Temper

Standard BS 2871 PART3 ASTM B 111 DIN 1785 NFA 51 102 JIS H3300 IS 1545
Symbol CZ 110 C 68700 CuZn20AI2 CuZn22AI2 C 6870 CuZn21AI2As
Cu 76.0-78.0 76.0-79.0 76.0-79.0 76.0-79.0 76.0-79.0 76.0-78.0
Al 1.8-2.3 1.8-2.5 1.8-2.3 1.8-2.5 1.8-2.5 1.8-2.3
Pb 0.07 0.07 0.07 0.07 0.07 0.07
Ni - - 0.1 - - -
Fe 0.06 0.06 0.07 0.06 0.06 0.06
Zn REM'DER REM'DER REM'DER REM'DER REM'DER REM'DER
As 0.02-0.06 0.02-0.06 0.02-0.35 0.02-0.06 0.02-0.06 0.02-0.06
P - - 0.01 - - -
Total Impurities Max.



-

0.03 - 0.1 0.3 - 0.3
Condition  M 61 F39 - O O

TA - F34 - - TA

O - - - - D
Yield Strength n/mm2 - 125 1 50-230 - - 400Mpa Max.

- 105 120-180 - - 355Mpa Min.

- - - - - 415Map
Tensile n/mm2 Minimum - 345 390 - 373 -

- - 340 - - -
Elng'Tion Percent (%) - - 45Min. - 40Min. 85Max.

- - 55Min. - - 80-110

- - - - - 130Min.
Hardness HV5 - 150Min - - 80-130 - -

85-110 - - - - -

75Max. - - - - -
Grain Size mm (75X) 0.05Max. 0.010-0.045 - 0.010-0.045 0.010-0.045 0.010-0.045

Types of Aluminium Brass Tubes / Fin Tubes

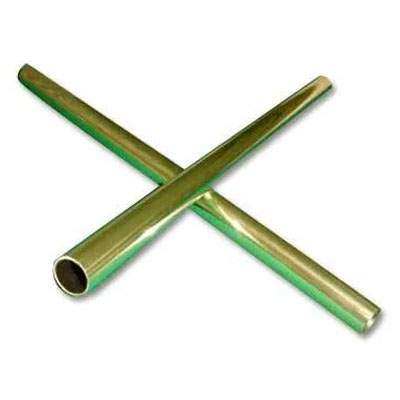

Aluminium Brass Tube

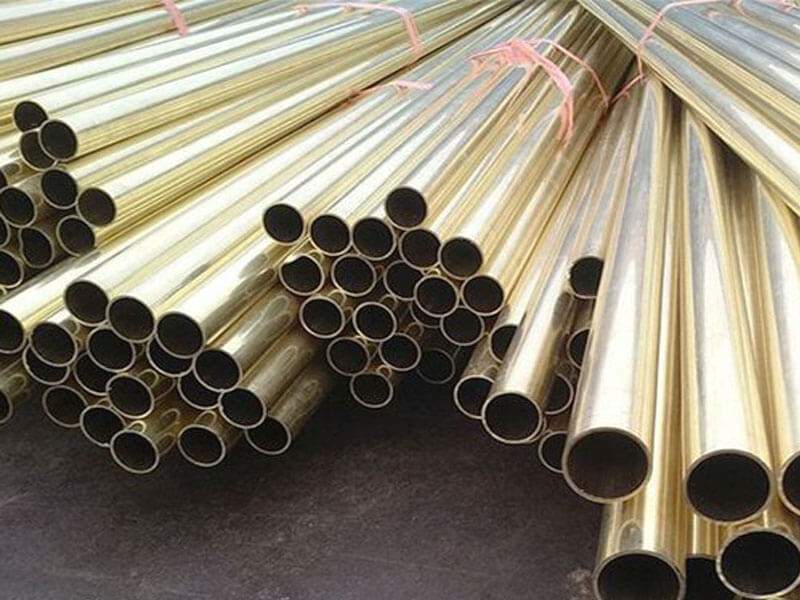

Aluminium Brass Tube
line

Aluminium Brass Refrigeration Tube

Aluminium Brass Heat Exchanger Tube

Aluminium Brass Tubes for Evaporators

Radiator Aluminium Brass Tube

Aluminium Brass Tube for Oil Burner

Aluminium Brass Fin Tube

Aluminium Brass Fin Tube
line

Aluminium Brass Crimped Type Finned Tube

Aluminium Brass L Base Finned Tube

Aluminium Brass G Base Finned Tube
