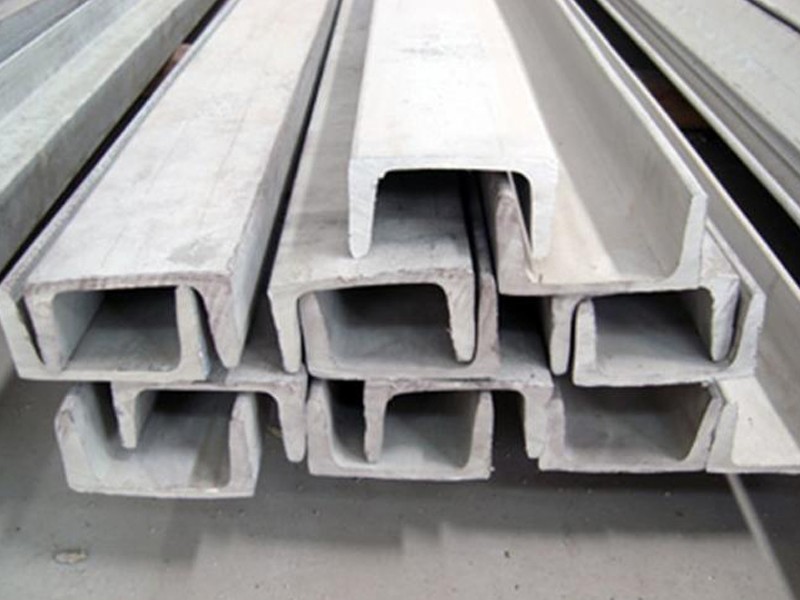

Sparsh Impex is an SS 304L Channel stockist that offers premium quality products to meet the requirements of different sectors. Our SS 304L Channels are made to ensure high performance and long-lasting. This grade of stainless steel has lesser carbon content, better resistance and improved weldability. It is the most suitable material for any structural application that requires high strength and durability.
The features of 304L SS Channels include high resistance to oxidation, pitting, and crevice corrosion. The channels have very good tensile strength and work well under high-temperature conditions, which are ideal for certain applications. The products also have a smooth surface finish and accurate dimensions to ease handling and installation.
Stainless Steel 304L Channels can be used in many different applications. They are frequently employed in construction and structural purposes such as support, beams and brackets. These channels are also used in manufacturing industries to produce different structural parts and in automotive and marine industries.
The quality of SS 304L Channels is strictly controlled to meet the existing standards and even go a notch higher. In addition to the quality control tests, we conduct mechanical properties tests, resistance tests and dimensional accuracy tests. Every batch is carefully checked to ensure that it meets international and customer requirements.
Being one of India's premier SS 304L Channel suppliers, we ensure that we give our customers the best products and the best service. We hold large stocks of products to guarantee you get the correct products for your project at the right time. Being a quality and reliability oriented company, we are your one-stop-shop for all your SS 304L Channel requirements.
Can Stainless Steel 304l Channel Be Welded?
Yes, the stainless steel 304L channel can be welded through TIG welding, MIG welding, and arc welding. It has low carbon content, reducing problems such as carbide precipitation and therefore, it can be welded without extensive post weld heat treatment.
How Can I Order Stainless Steel 304l Channel?
For more information on Stainless Steel 304L channel, please visit the company’s website or contact us. Mention the type, dimensions and the quantity needed to be supplied. Call or email for information on the price, delivery, and the possibility of personalising the product.
What is the Thickness of SS 304l Channel?
The thickness of SS 304L channel may differ depending on the producer and the particular construction. Normally, it is between 3mm and 25mm. You can refer to the product labels or reach us directly for accurate measurements.
Specifications : ASTM A276, ASME SA276
Condition :HRAP
Size Range : Base: 80 to 150 mm Side: 40 to 75 mm
Thickness : 5 to 6 mm (depending on size)
Type : Stuctural Steel Channel, Bars, Equal, Unequal, L, T, Hot Rolled
Grades : 304L
Application : Paper Industry, Architucture, Construction, Kitchen Equipment, Pharma, Engineering Industries And Many More
| Grade | UNS | DIN | JIS | EN | GOST | AFNOR |
|---|---|---|---|---|---|---|
| SS 304L | S30403 | 1.4306 / 1.4307 | SUS 304L | X2CrNi18-9 / X2CrNi19-11 | 03Х18Н11 | Z3CN18‐10 |
| Grade | C | Mn | Si | P | S | Cr | Ni |
|---|---|---|---|---|---|---|---|
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | 8 – 13 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
SS 304L U Shape Channel
Stainless Steel S30403 U Shape Channels
304L SS Equal Leg Channel
SS 1.4306 / 1.4307 U Shape Channel
SUS 304L U Shape Channels
AISI 304L U Shape Channel
SS 304L C Shape Channel
Stainless Steel S30403 C Shape Channels
304L SS Unqual Leg Channel
SS 1.4306 / 1.4307 C Shape Channel
SUS 304L C Shape Channels
AISI 304L C Shape Channels
SS 304L Miscellaneous Channels
Stainless Steel S30403 Miscellaneous Channels
SS 1.4306 / 1.4307 MC Channels
SUS 304L Miscellaneous Channels
AISI 304L Miscellaneous Channels
Stainless Steel 304L MC Channels
SS 304L Strut Channels
Stainless Steel S30403 Strut Channels
SS 1.4306 / 1.4307 Strut Channels
SUS 304L Strut Channel
AISI 304L Strut Channels
Stainless Steel 304L Slotted Strut Channel
SS 304L Slotted Strut Channels
| WEB THICK. IN IN. | FLANGE WIDTH IN IN. | WEIGHT PER FT. IN LBS. | MFG | |
|---|---|---|---|---|
| DEPTH IN IN. X WT./FT./ LBS. | WEB THICK. IN IN. | FLANGE WIDTH IN IN. | WEIGHT PER FT. IN LBS. | MFG |
| C3 x 4.1 | .170 | 1.410 | 4.1 | Hot Rolled |
| C3 x 4.1 | .170 | 1.410 | 4.1 | Hot Rolled |
| C4 x 5.4 | .184 | 1.584 | 5.4 | Hot Rolled |
| C4 x 7.25 | .321 | 1.721 | 7.25 | Hot Rolled |
| C5 x 6.7 | .190 | 1.750 | 6.7 | Hot Rolled |
| C5 x 9.0 | .325 | 1.885 | 9.0 | Hot Rolled |
| C6 x 8.2 | .200 | 1.920 | 8.2 | Hot Rolled |
| C6 x 10.5 | .314 | 2.034 | 10.5 | Hot Rolled |
| C6 x 13 | .437 | 2.157 | 13 | Laser Fused |
| C8 x 11.5 | .220 | 2.260 | 11.5 | Laser Fused |
| C8 x 13.75 | .330 | 2.343 | 13.75 | Laser Fused |
| C8 x 18.75 | .487 | 2.527 | 18.75 | Hot Rolled |
| C10 x 15.3 | .240 | 2.600 | 15.3 | Laser Fused |
| C10 x 20 | .379 | 2.739 | 20 | Laser Fused |
| C10 x 25 | .526 | 2.886 | 25 | Laser Fused |
| C10 x 30 | .673 | 3.033 | 30 | Laser Fused |
| C12 x 20.7 | .282 | 2.942 | 20.7 | Laser Fused |
| C12 x 25 | .387 | 3.047 | 25 | Laser Fused |
| C12 x 30 | .510 | 3.170 | 30 | Laser Fused |
| C15 x 33.9 | .400 | 3.400 | 33.9 | Laser Fused |
