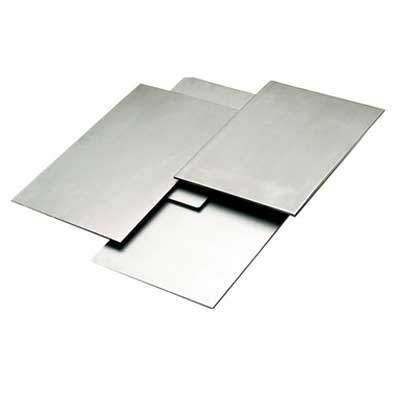

The SS sheets and plates of grade 304L come in ASTM A240/ ASME SA240 standard. The thickness of SS Plates /Sheets is ranging from 3mm to 20mm. It comes in various finishes such as hot rolled, cold rolled and others. These are supplied in various forms such as plain sheet, shim sheet, perforated sheet, chequered plate etc. It comes in another equivalent standard such as UNS s30403, JIS 304L, BS 304S11 and others. Before dispatch the end product to the client, it is subjected to various tests to ensure its quality.
The stainless steel of grade 304L offers many outstanding features like high strength, high durability, and long service life. These sheets and plates products of SS are made by top quality raw material and are supply all across the globe. The SS 304L plates and sheets are designed to meet the specific requirements of the customers. These SS Products are manufactured especially for high corrosive and high heat resistance applications.
The Stainless Steel 304L Sheets & Plates are long lasting and can fit into any length without any trouble and it is available in different shapes and sizes. The Sparsh Impex is a leading, exporter and supplier of SS sheets and plates and this product is used in various industries for different applications. It is designed as per national as well as international standards.
Standard : ASTM / ASME A240 / SA240
Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Thickness : 0.1mm to 12 mm Thk
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304L | 1.4306 / 1.4307 | S30403 | SUS 304L | 3304S11 | 03Х18Н11 | Z3CN18-10 | X2CrNi18-9 / X2CrNi19-11 |
| Element | SS 304L |
| C | 0.035 max |
| Mn | 2.0 max |
| Si | 1.0 max |
| P | 0.045 max |
| S | 0.03 max |
| Cr | 18 – 20 |
| Ni | 8 – 13 |
| Element | SS 304L |
| Density | 8.0 g/cm3 |
| Melting Point | 1400 °C (2550 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
|
Grade
|
Density of ss304 in kg/m3
|
Elastic Modulus (GPa)
|
Mean Coefficient of Thermal Expansion (μm/m/°C)
|
Thermal Conductivity (W/m.K)
|
Specific Heat 0-100°C (J/kg.K)
|
Electrical Resistivity (nΩ.m)
|
|||
|
0-100°C
|
0-315°C
|
0-538°C
|
at 100°C
|
at 500°C
|
|||||
|
304/L/H
|
8000
|
193
|
17.2
|
17.8
|
18.4
|
16.2
|
21.5
|
500
|
720
|
For more specifications visit - SS 304L Material Properties pdf
